Schaller Guitar Bridge GTM

Schaller Guitar Bridge GTM

High-quality Tune-o-matic bridge for all Les Paul™* type guitars

Compatible with post spacings from 74.0 – 74.5 mm

Features special retainer springs to prevent bridge rattle or string buzz

Saddles supplied without preconfigured string grooves allowing for individual string spacing

Saddles are from brass

Slant angle to be determined by guitarmaker based on scale length and string gauge.

Installation:
non-reverse: intonations screws show to the pickups
reverse: intonations screws show to the tailpiece

(*Les Paul is a protected trademark owned by Gibson Musical Instruments Corporation).

technical specification

distance height adjustment screws 74 – 74,5mm, string spacing E-e 52,5mm, string radius 12“-14“ (usable for fretboard max. 10-16 inch, depending on the notches of the string saddles more outside or inside), minimal G/d string height above body 13,7mm, weight 53g (70g with accessories), for lefty: yes

scope of supply

2 press-in bushings M7 with 2 height-adjustment screws M5 (metric).

For other press-in bushings and height-adjustment screws please see under Bridges/ Replacement Kits and order additionally.

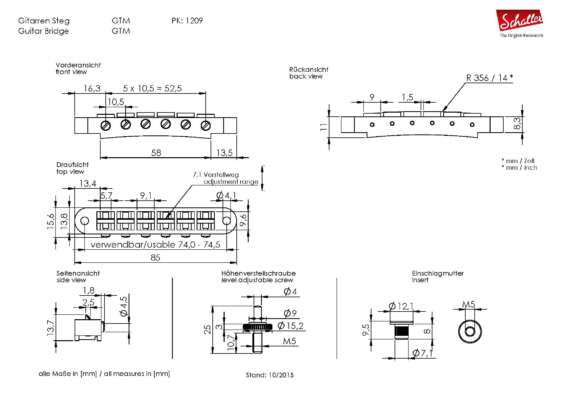

technical drawings (without engagement)

1209 (pdf-file)
