FX100

Portable Multi Effects Pedal

The FX100 from Flamma is the latest entry in to the multi-effects ring from new startup Flamma. For those looking for the latest entry-level multi-effects, take a closer look at the FX100.

On the amps and effects front, 55 high-quality amp models are included as are 26 IR-based factory speaker cab models designed to emulate the sound and feel of a real tube amplifier. The user-favorite support for third-party impulse response files has now been upgraded to support files of up to 512 sampling points each, allowing for more options in the quest for the perfect tone.

The FX100 also includes standard multi-effects features such as a built-in tuner, 10 metronome and 40 drum machine options, a 80-second capacity looper, auxiliary audio input and a programmable footswitch. A variety of presets are also preloaded so for those that don’t want to waste any time setting things up right out of the box.



Features



Connection

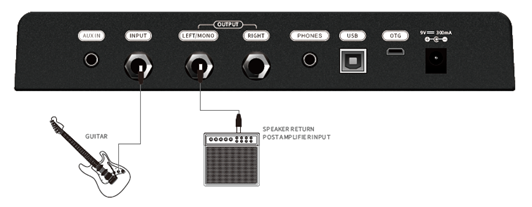

1. Connect to the input of your amplifier.

Toggle the AMP and CAB modules off.

2.Connect to power amp.

It is recommended to toggle the CAB module off.

3.Connect to FX LOOP.

The FX100 can be used with or in place of traditional modulation stompboxes.

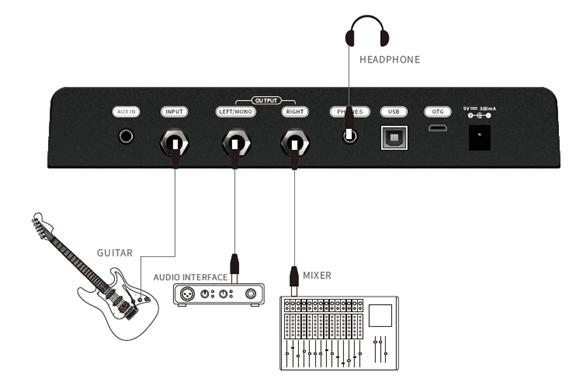

4.HOME STUDIO

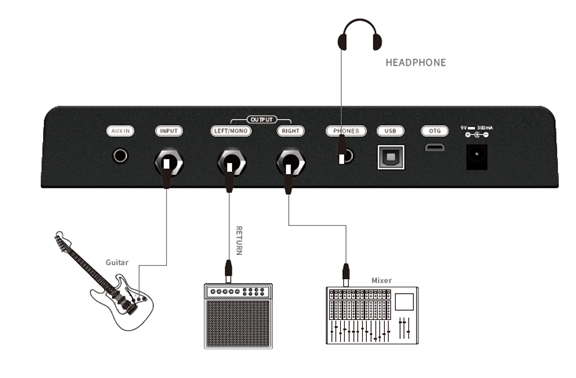

5.LIVE SHOW

L output: With CAB module on.

R output: With CAB module off.

Video



Specification

Num. Effect Blocks:	9
Num. of Effects:	151
Num. of Presets:	200
Input:	1/4” mono audio jack
Output:	1/4” mono audio jack
AUX IN:	1/8” stereo audio jack
Headphone Output:	1/8” stereo audio jack
Sampling Rate:	44.1 kHz
Sampling Accuracy:	24 bit
Dynamic:	98dB
Impulse Response (IR) format:	WAV
IR Sampling Rate:	44.1 kHz
IR Sampling Accuracy:	24bit
IR Sampling Point:	512 pts
OTG port:	Micro USB port
Power Supply:	DC. 9V 300mA Center negative
Dimensions:	230 mm X 155.99 mm X 32.8 mm
Weight:	0.859kg
Accessories:	AC adaptor 9V DC,Safety Instruction & Warranty Card，Sticker, Adapter, USB cable, quick guide
